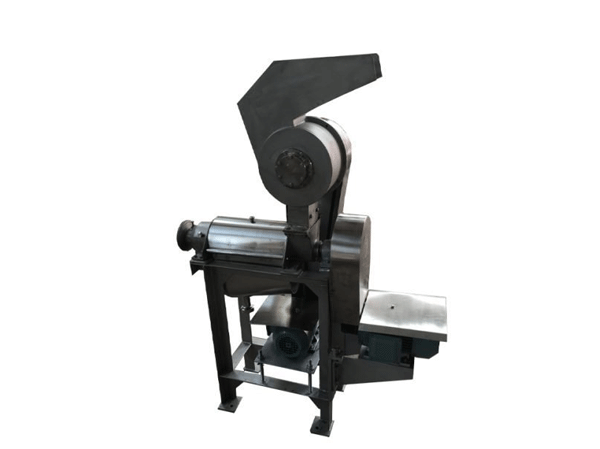

Juice Machine Big Electric Industrial Fruit Juice Extractor Machines Price
The machine is made of front pedestal, feeding hopper, screw, filtrating screen, juice storing device, rear support, slag notch and other parts. Screw spindle support in the rolling bearing and right-hand side supports in hand wheel bearings
Product Introduction
The machine is suitable for pressing tomato, pineapple, apple and orange etc fruit and vegetable juice.
| Type | HF-0.5 | HF-1.5 | HF-2.5 |
| Feed throughput | 500 Kg/hour | 1500 Kg/hour | 2500 Kg/hour |
| Screw diameter | Φ87.5mm | Φ175mm | Φ250mm |
| Filter screen pore size | 0.6mm | 0.6mm | 0.6-1mm |
| Motor Power | 1.5Kw | 4Kw | 11Kw |
| Spindle speed | 400rpm | 400rpm | 400rpm |
| Weight | 100Kg | 240Kg | 480Kg |
| Dimension | 1100*265*920mm | 1560*450*1340mm | 1980*680*1620mm |
Structure
The machine is made of front pedestal, feeding hopper, screw, filtrating screen, juice storing device, rear support, slag notch and other parts. Screw spindle support in the rolling bearing and right-hand side supports in hand wheel bearings. The electric motor drive the spiral working through a pair of v-belt pulley.
Working principle:
The main component of this equipment is that spiral bottom diameter increase and spiral pitch gradually reduce along the direction of material residues outlet, when the spiral boost the materials, due to the spiral cavity volume reduce so it can squeeze the material. Viewed from the screw spindle direction of rotation to the direction of feed hopper & slag notch. The raw materials are added into the feed hopper is clockwise direction, it pressed by the spiral propel, and the squeezed juice will flow into the juice container through the filter screen, and the waste materials will be discharged through the annular space which formed between the spiral and the pressure adjusting taper part. The interspace size adjustable when the pressure regulating part move towards the axial direction.
