Product Introduction

Power can filling machine

This product is applicable for various round cans and irregular cans to weigh and fill powdery materials like milk powder, rice flour, protein powder, soybean milk powder, ground coffee, ground pepper, flavor and fragrance and additives. With reliable quality and easy operation, it is ideal equipment necessary for such industries as food, pharmacy and chemical engineering. The machine can be used alone or together with other production lines.

 Performance characteristics

1. The machine has a wide range of application since weighing and filling can be realized for different-sized round cans and irregular cans by adjusting the positioning device only;

2. The machine is highly automatic and easily operated with PLC control and human-machine interface touch panel;

3. Stable weighing is ensured with servo motor and servo drive-controlled screw rod;

4. Corresponding weighing and filling are conducted only when there is a can, and no can no filling.

5. The continuously-variable conveyor is simple in structure and easy to operate and maintain;

6. Horizontal open-type feed box is very convenient to clean;

7. With height-adjusting handwheel, it is convenient to adjust the machine head height;

8. The outer housing and main parts are made of 304 stainless steel to meet hygienic requirements of food and drugs.

Technical Parameters

Can size	Can diameter: Φ50-130mm, Can height: 50-250mm
Filling weight	10 – 5000g (change the screw accessory)
Filling accuracy	Deviation ≤±2% for packing weight ≤100g; Deviation ≤±1% for 100g<packing weight ≤500g; Deviation≤±0.5% for packing weight >500g.
Filling speed	15-30 bottles/min
Voltage	3P 380V 50Hz
Compressed air	≥0.4Mpa   100L/min
Total power	1.5Kw
Total weight	500kg
Overall dimensions	2000×800×2100mm (excl. material feeder)
Hopper volume	50L

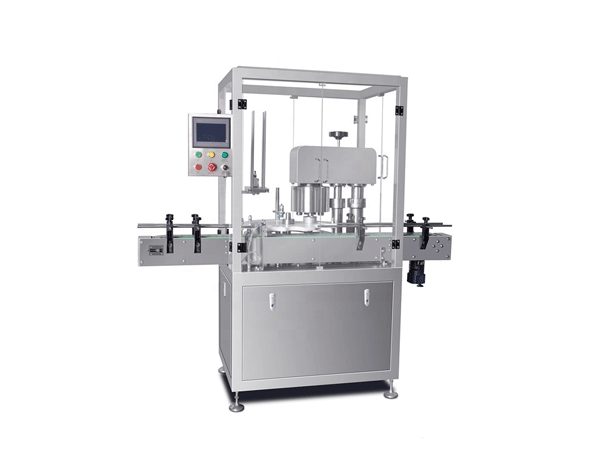

Can sealing machine Vacuum Can seamer Machine

This product is used to vacuumize, fill with nitrogen and seam all kinds of round cans like tin cans, milk powder cans, plastic cans and paper cans. It is mainly applicable to seam packages for such products as milk powder, protein powder, dried meat, seafood, assorted vegetables, sauces and pickles in pharmaceutical and food industries and so on. It is a kind of ideal equipment necessary for such industries as food, milk powder and pharmacy to keep products fresh and extend the shelf life by vacuuming and nitrogen filling. The machine can be used alone or together with other filling production lines.

 Performance characteristics

1. Processes of vacuuming, nitrogen filling and seaming are conducted in seamed chamber to effectively prevent air from entering the cans again;

2. Different-sized ring-pull cans and milk powder cans can be seamed by replacing accessories like lid-pressing die, can clamp and lid-dropping device;

3. Can-lid interlock control: corresponding lid is given only when there is a can, and no lid no can;

4. The machine will stop in the case of no lid: it can automatically stop when no lid is dropped by the lid-dropping device so as to avoid seizing of lid-pressing die by the can and parts damage of seaming mechanism;

5. Auto-control: with PLC (Programmable Logic Control), the machine can be operated on human-machine interface touch panel;

6. All pneumatic components and solenoid valves are “AirTAC” brand;

7. With high precision digital pressure sensor for vacuum pressure detection, the vacuum pressure can be set freely as required;

8. Extremely low vacuum degree can be achieved with high-pressure vacuum pump;

9. The machine can realize different functions like vacuuming without nitrogen filling, no vacuuming & no nitrogen filling, and so on;

10. The outer housing and main parts are made of SUS304 stainless steel to meet hygienic requirements of food and drugs.

Technical Parameters

Production capacity	6-7 cans/min
Applicable range	Can diameter: φ70-φ127mm Can height: 70-190mm ) (Special specifications can be customized.)
Voltage	380V  50Hz 3P  380V  50Hz
Power	4Kw
Weight	500kg
Overall dimensions	2000(L)*780(W)*1850(H)mm
Working pressure (compressed air)	≥0.6Mpa
Air consumption (compressed air)	About 200L/min
Nitrogen source pressure	≥0.2Mpa
Nitrogen consumption	50L/min About 50L/min
Remaining oxygen	≤3%
