Noodle Candy Ice Lolly Pillow Packing Machine can pack many kinds of larger products as per products size, we can customize.

TEL: +86-371-86231703E-mail : [email protected]

Product Introduction

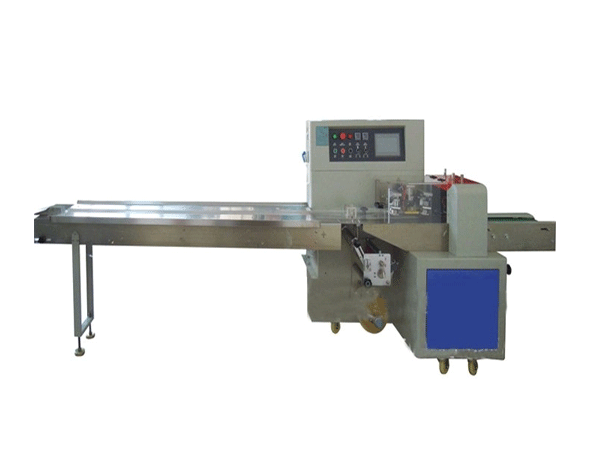

Noodle Candy Ice Lolly Pillow Packing Machine can pack many kinds of larger products as per products size, we can customize.

(I) performance characteristics

Double motor, frequency converter and PLC control, bag length is set cut already, don’t need to adjust empty, one pace reachs the designated position, time-saving membrane.
The man-machine interface, convenient and quick parameter setting.
The fault self-diagnosis function, fault shows at a glance.
Glances standard Gao Gan degrees photoelectric tracking, sealing and cutting position, digital input more accurately in the position of sealing and cutting.
The temperature independent PID control, better suited to a variety of packaging materials.
Stop function, non-stick knives, do not waste envelope.
Drive system is concise, more reliable, more convenient maintenance.
All control by the software implementation, convenient function adjustment and technology upgrade, never backward.

(II) the technical specifications

Model	450 X
The film width	Max.450mm
Bag length	120-450mm
Width of the bag	50-200mm
Products are highly	Max.80mm
Roller diameter	Max.320mm
Packing speed	40-80bag/min
Voltage and Frequency	220V,50/60HZ 2.8KVA
Size	4020×7800×1450mm
Weight	700KG
Remark	For injection can be customized according to customer requirements
