China Semi Automatic Water Bottle Barrel Drum Washing Drying Filling Filler Machine capper Capping Machine Manufacturers Price
Bottle Drum Washing Drying Filling Capping Machine can make as per client’s request.
Product Introduction
China Semi Automatic Water Bottle Barrel Drum Washing Drying Filling Filler Machine capper Capping Machine Manufacturers Price

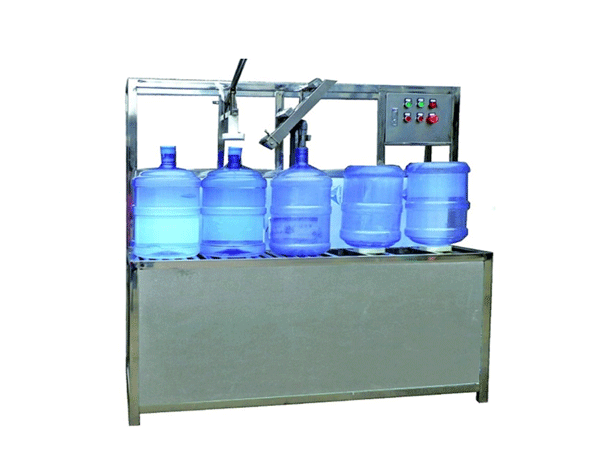

Bottle washing drying filling capping machine Overview
The machine is simple to operate and easy to use. Specific functions include: the first station, the barrel mouth is facing
The finished product is rinsed with water, and the time is adjustable; in the second station, the barrel is drained downward, and the time is adjustable; the third station, the filling port is customized according to customer requirements, if no instructions, the default is a standard 5 gallon barrel Type design. The filling time is adjustable; the fourth station is to press the cover manually, and the height is not required; the fifth station, the finished product is bottled water, waiting to be transported and stored.
Bottle washing drying filling capping machine Technical Parameters
| Device model | JDGZB-5-B type |
| Cleaning station | 1 |
| Number of filling heads | 1 |
| Production capacity | 80-150 barrels/H |
| voltage | AC380V |
| Filling pump power (kw)/quantity/material | 0.37/1 set/stainless steel |
| Material | SUS304 |
| Dimensions (length*width*height mm) | 1500*600*1600 |
